DSP
DSP
Features
1、The seal and flow channel are separated to reduce negative pressure.
2、Solid single impeller, strong liquid carrier.
3、The material of the impeller and base plate is FCD45. (Hardness treatment:58)
4、H class motor insulation.(180°C)
5、The cutter is made of tungsten steel.
Application DSP Sewage Pump
Industrial sewage discharge
Environmental protection system
Removable pedestal
Septic Tank and Sludge Pumping
Flood Control and Emergency Drainage
Slaughterhouses and Food Processing Plants
Construction Sites and Temporary Installations.
Model No. | Output | Outlet | Pass Solid | MaxFlow(LPM) | LPM Flow @ Head | MaxHead(M) | Dimension | Weight | ||||||
HP | KW | mm | inch | Dia(mm) | 3M | 6M | 9M | 12M | 15M | L x W x H(mm) | Kg | |||
DSP(K)-10 | 1 | 0.75 | 50 | 2" | 30 | 400 | 370 | 270 | 180 | 60 | - | 14 | 250 x 183 x 490 | 31 |
DSP(K)-20 | 2 | 1.5 | 80 | 3" | 40 | 880 | 840 | 740 | 590 | 410 | 190 | 18 | 400 x 240 x 545 | 37 |
DSP(K)-30 | 3 | 2.2 | 80 | 3" | 40 | 1200 | 1170 | 1070 | 900 | 700 | 470 | 20 | 425 x 220 x 615 | 55 |
DSP(K)-50 | 5 | 3.7 | 100 | 4" | 45 | 1300 | 1260 | 1180 | 1050 | 870 | 650 | 22 | 425 x 220 x 615 | 57 |
Model No. | Output | Outlet | Pass Solid | MaxFlow(LPM) | LPM Flow @ Head | MaxHead(M) | Dimension | Weight | ||||||
HP | KW | mm | inch | Dia(mm) | 5M | 10M | 15M | 20M | 25M | L x W x H(mm) | Kg | |||
DSP(K)-75 | 7.5 | 5.5 | 100 | 4" | 50 | 2100 | 2050 | 1750 | 1250 | 650 | - | 24 | 485 x 300 x 735 | 99 |
DSP(K)-100 | 10 | 7.5 | 150 | 6" | 65 | 2500 | 2450 | 2200 | 1800 | 1200 | 500 | 28 | 485 x 300 x 840 | 109 |
DSP(K)-150 | 15 | 11 | 150 | 6" | 65 | 3200 | 3150 | 2950 | 2600 | 2050 | 1250 | 32 | 585 x 340 x 875 | 149 |
Dimension for DSP Series
Performance Curve for DSP Series

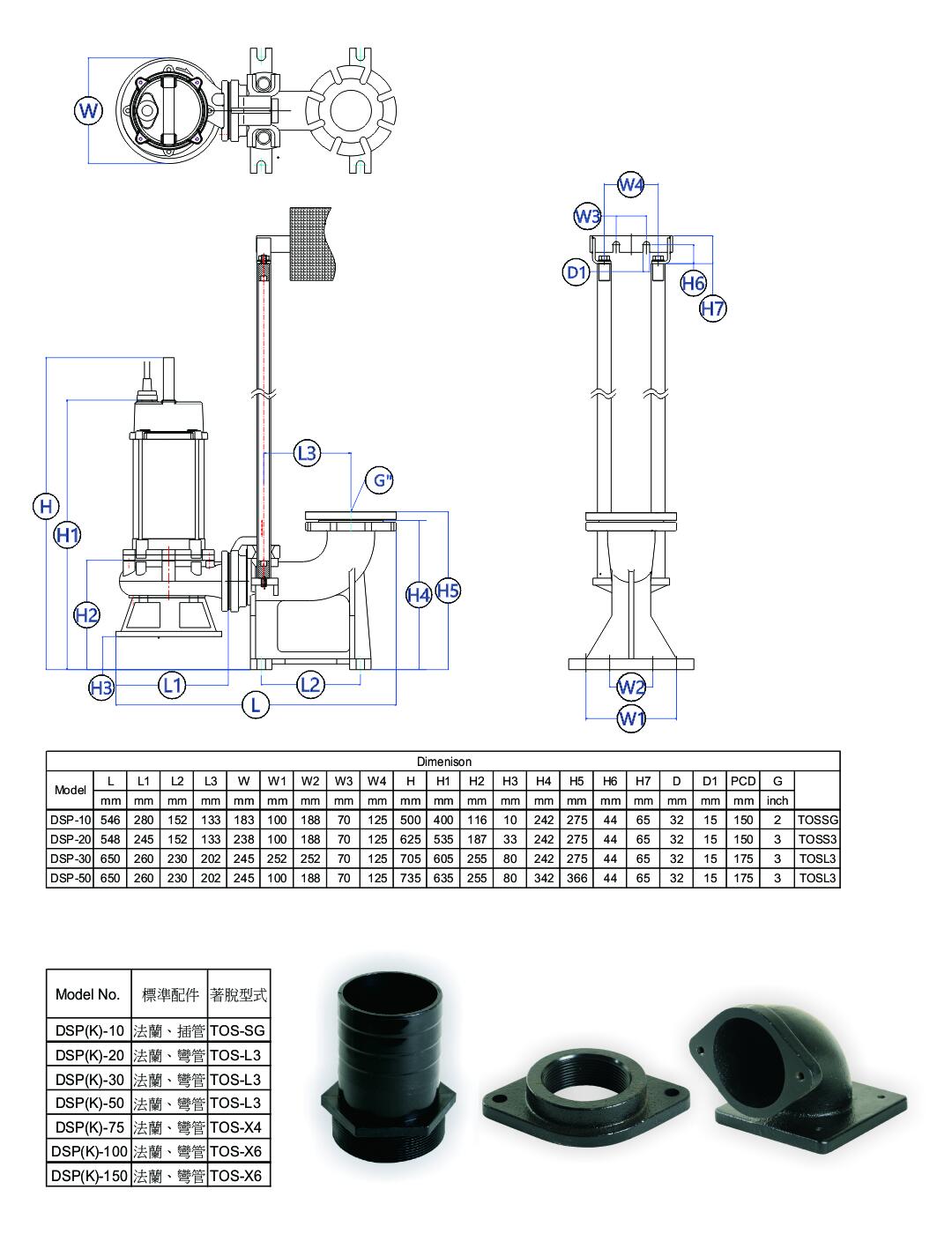

DSP + Pedestal/Guide Rail
Pumps is certificate with CE & CSA Series
